Fluidworks Front-Load Remote Oil Filter Kit – Streamlined Layout for Tight Engine Bays

Description

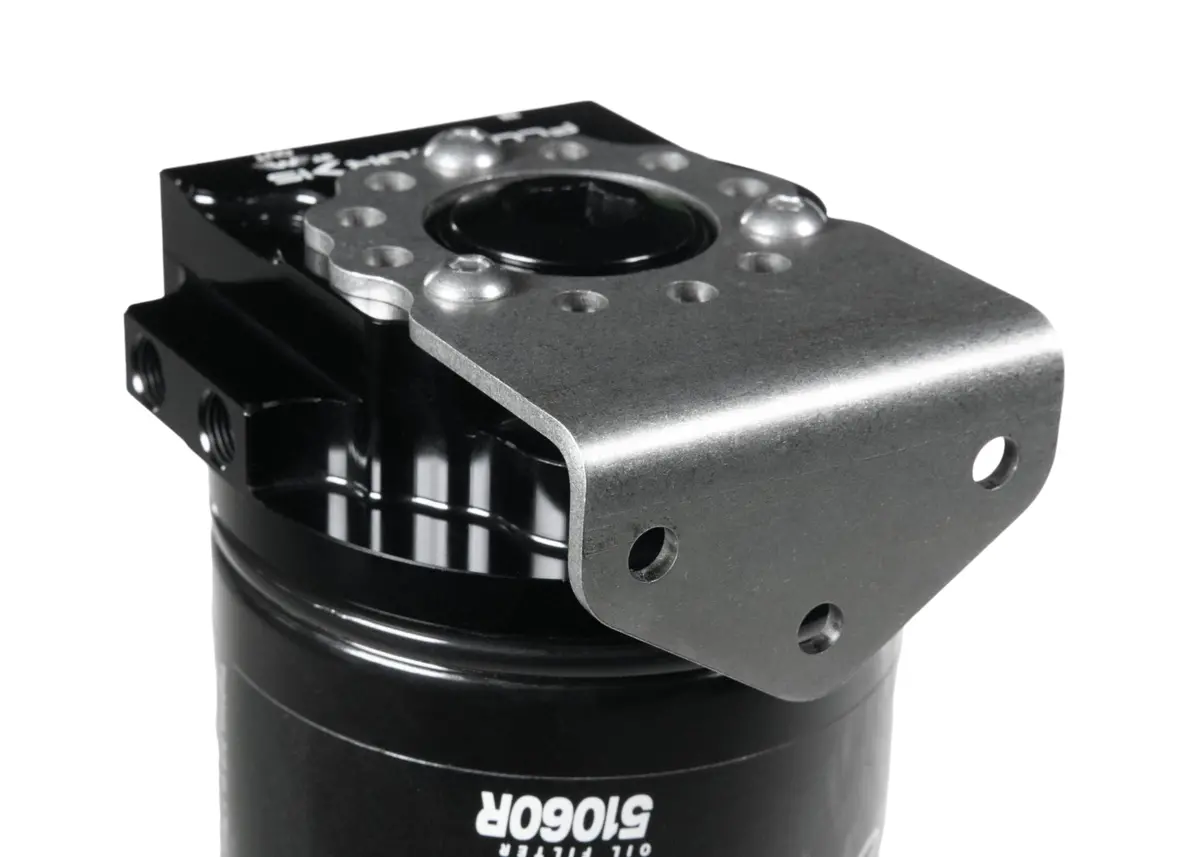

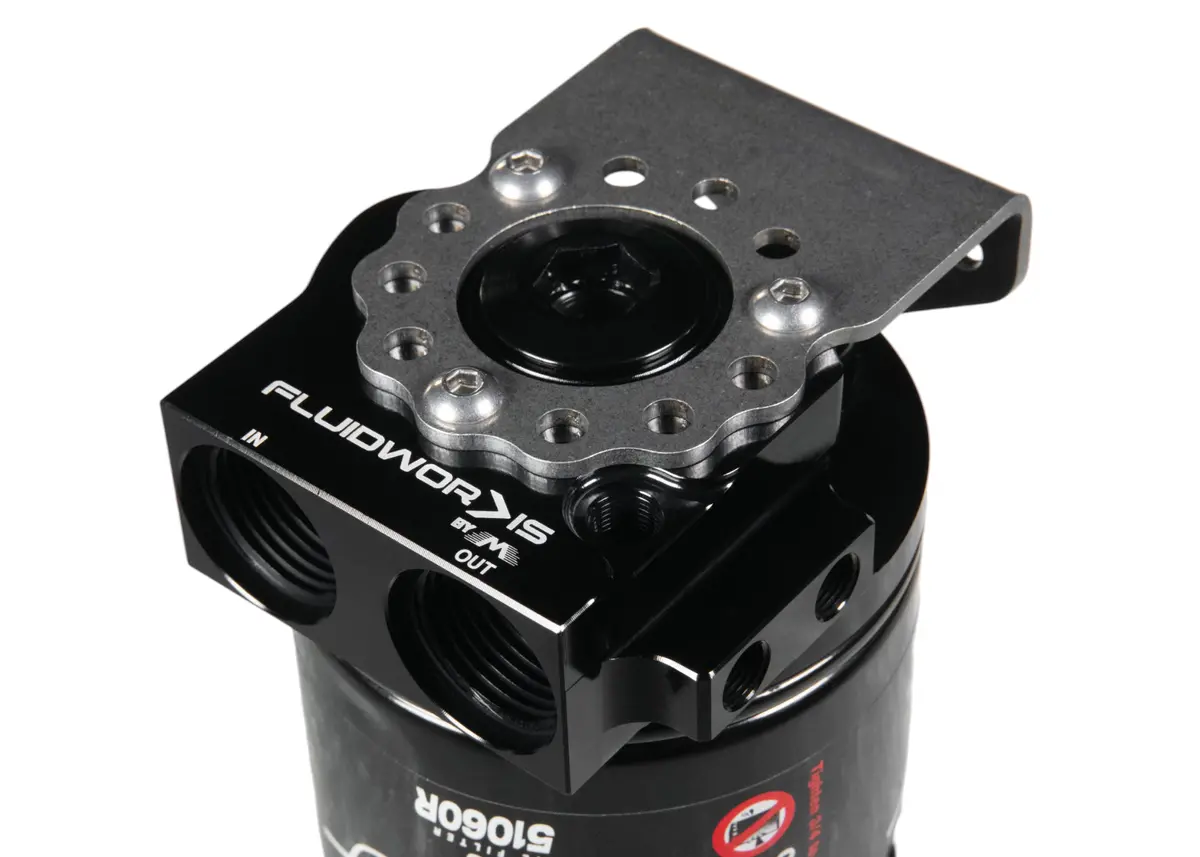

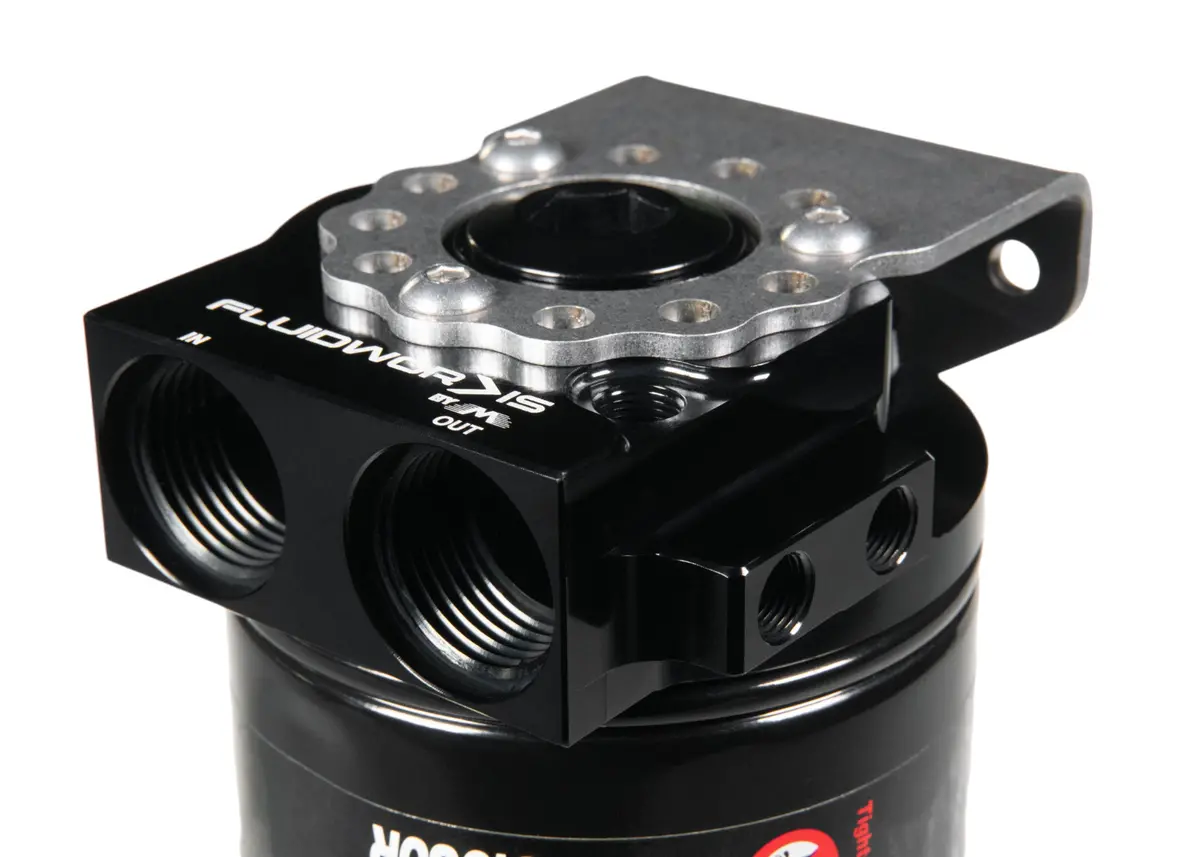

Fluidworks Remote Oil Filter – Front Load Style

Fluidworks oil filter mounts are designed to create a more usable and adaptable option for running a remote oil filter on your dry sump or external wet sump engine.

Installation Instructions: Click Here

Features:

• -12 ORB Female inlet
• -12 ORB Female outlet
• Fittings Exit Front of
• (3) 1/8″ NPT female ports for turbo/supercharger oil feed, oil pressure sensor, oil temperature and more
• Clockable Stainless Steel Mounting Bracket
• Accepts 13/16-16 inch threaded filter (similar to 51060R)
• Billet CNC 6061 Aluminum construction
• Black Anodized Finish
• Made in the USA

Note: we do not recommend measuring oil pressure ONLY at the filter housing. This may create a false reading compared to actual engine oil pressure. We always recommend taking pressure internal to the engine to verify actual flow is happening internal to the engine.

For Fittings: Click Here

For Oil Filter: Click Here
