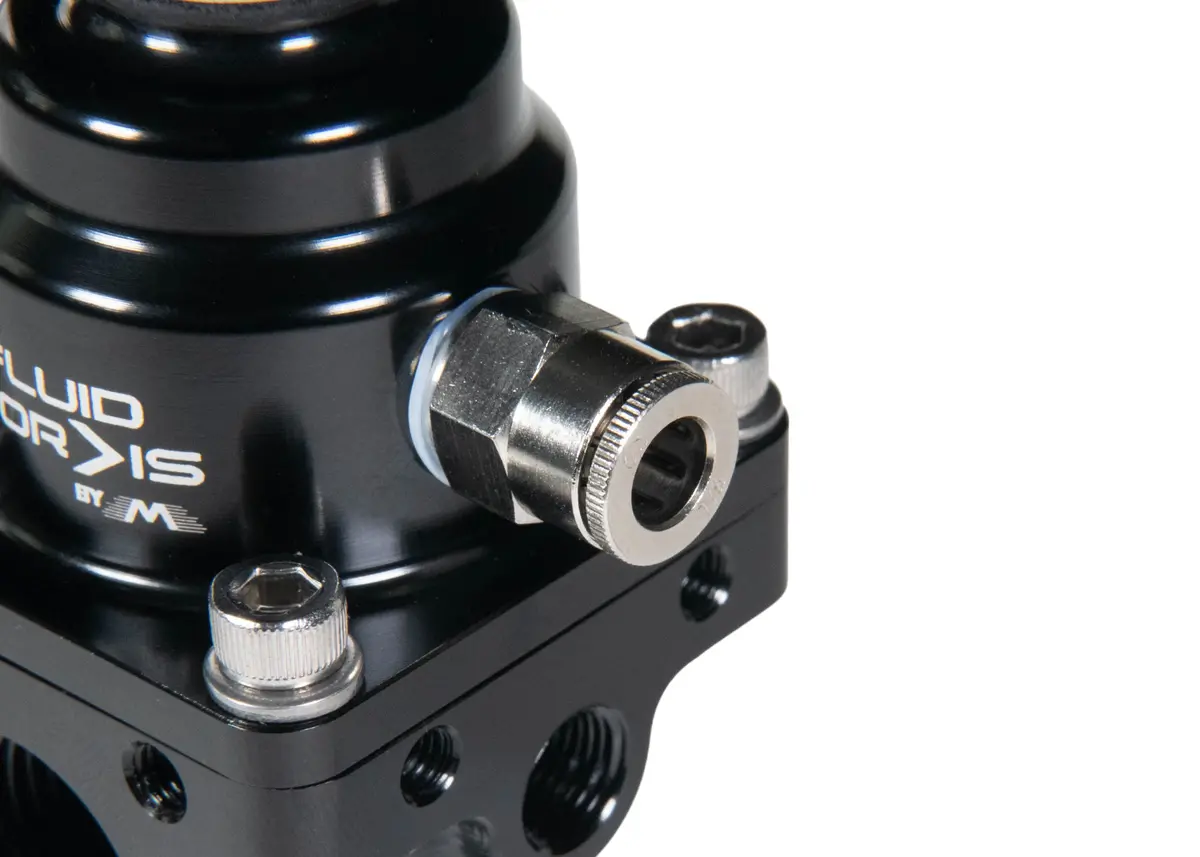

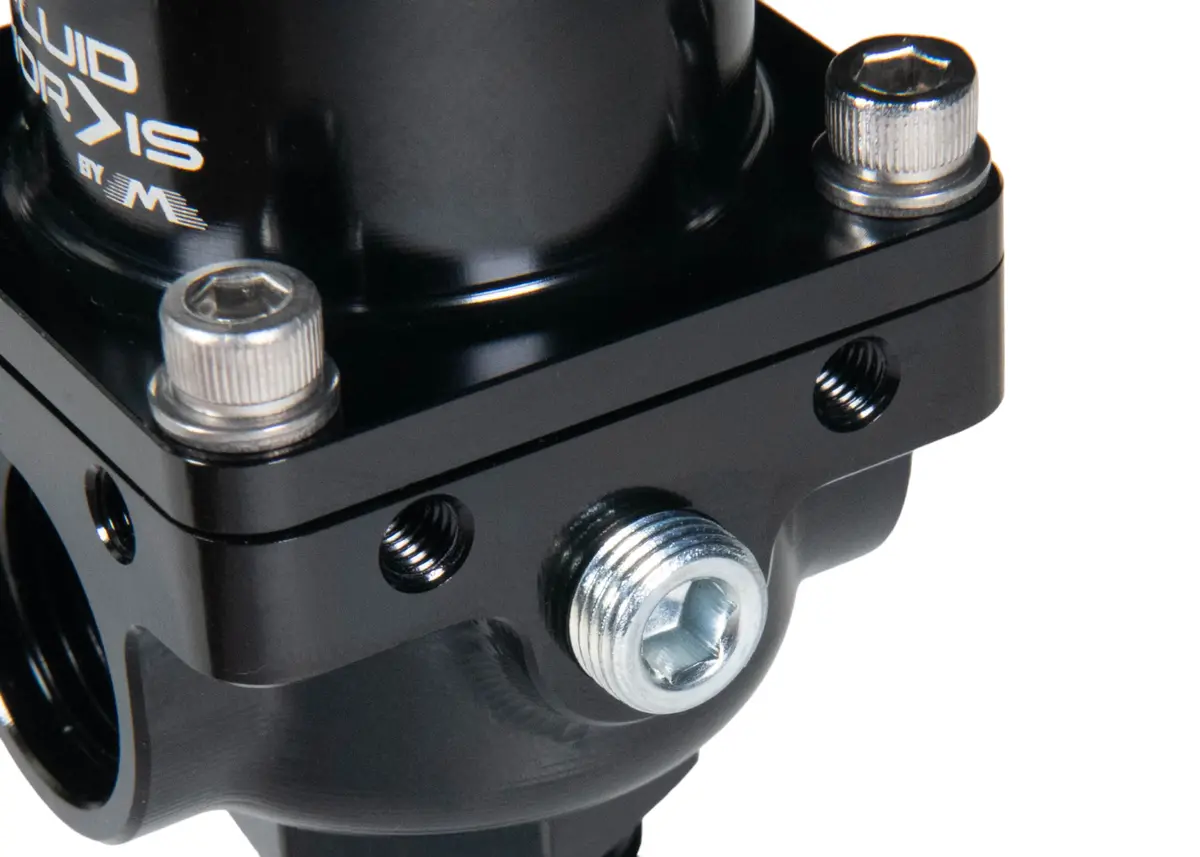

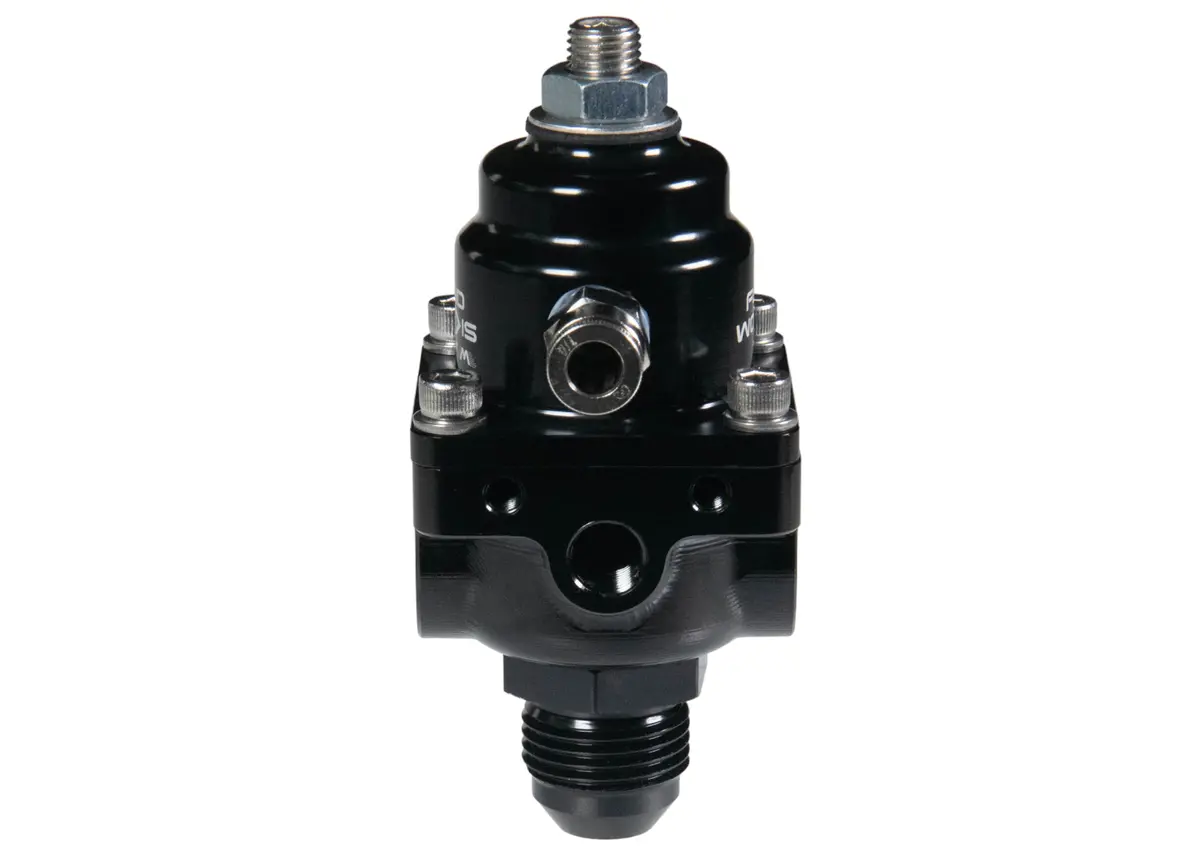

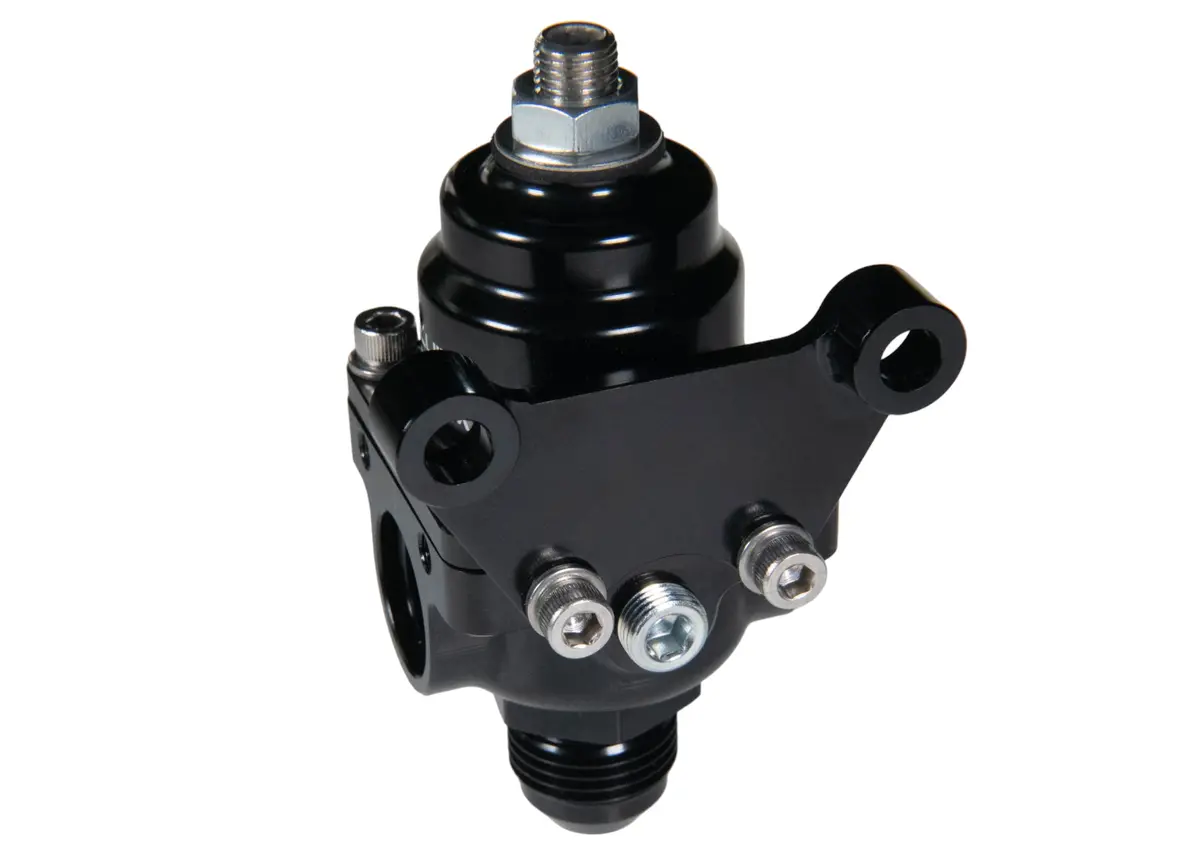

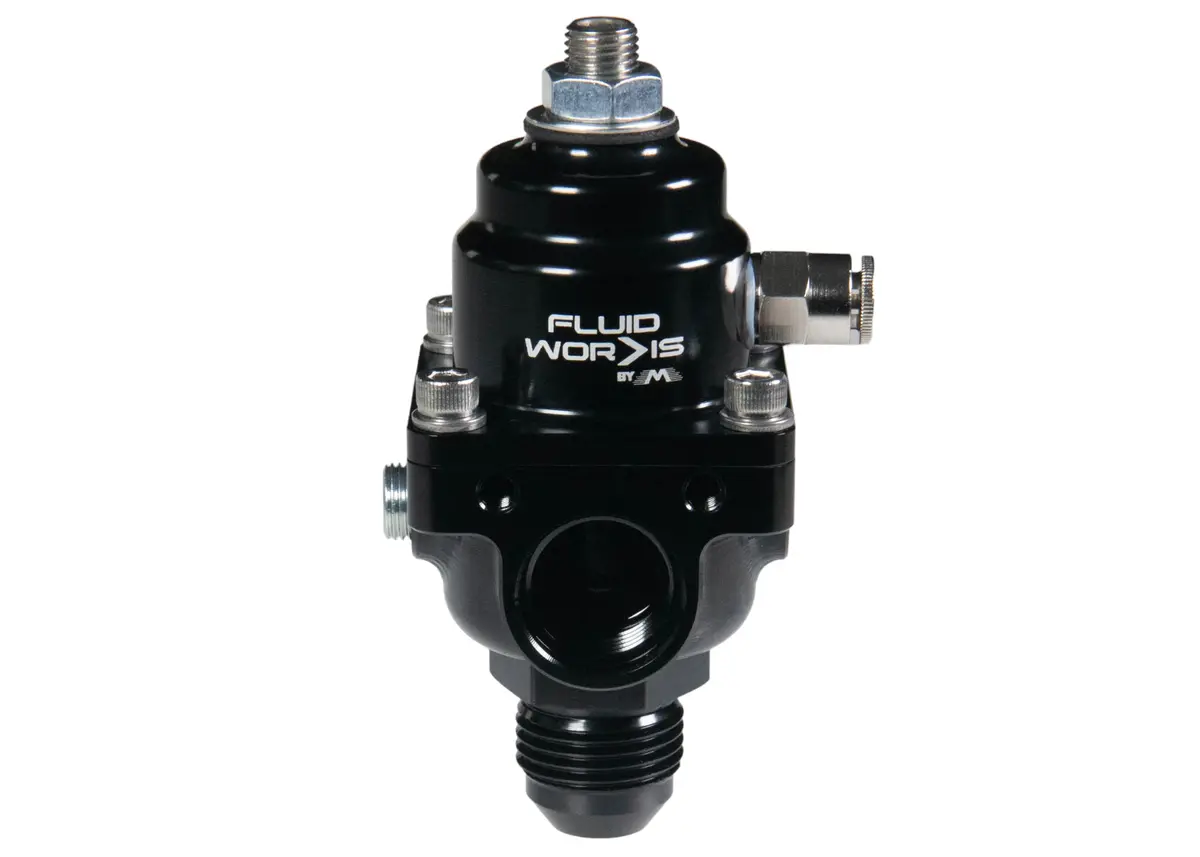

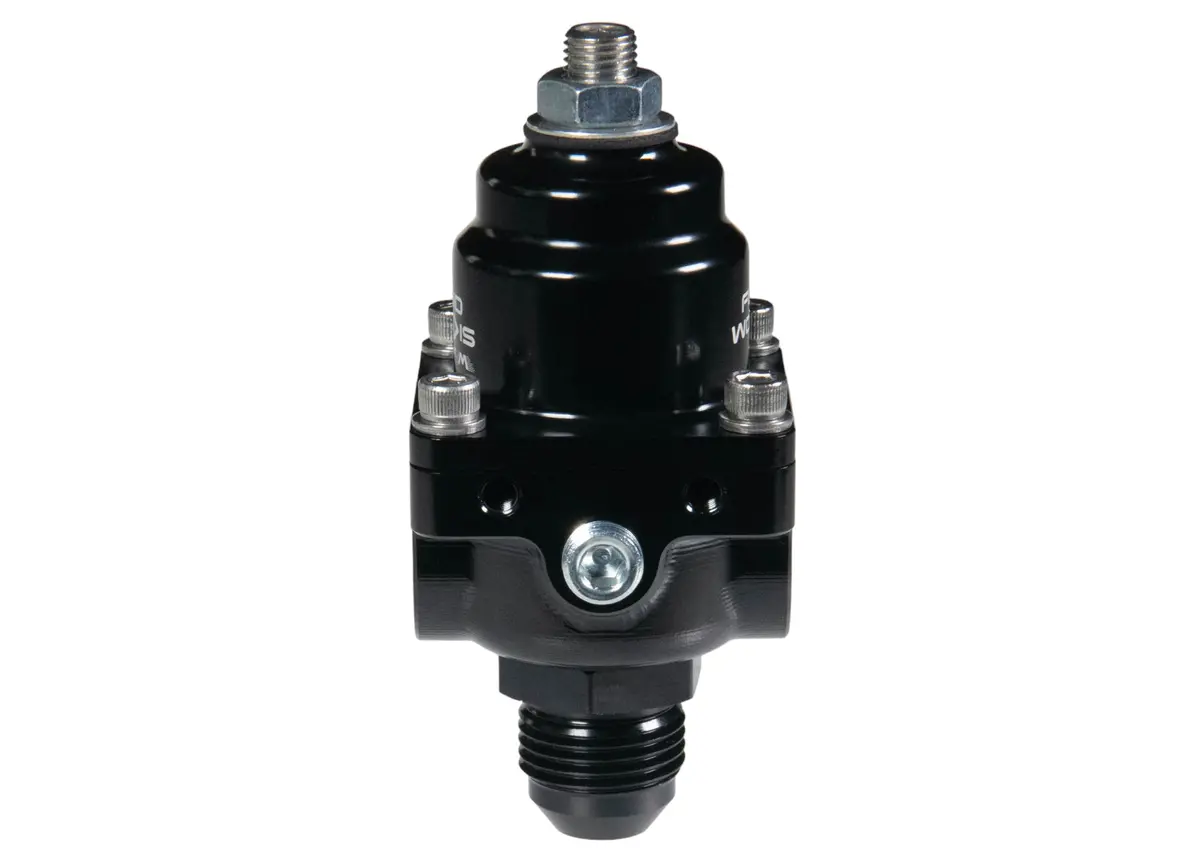

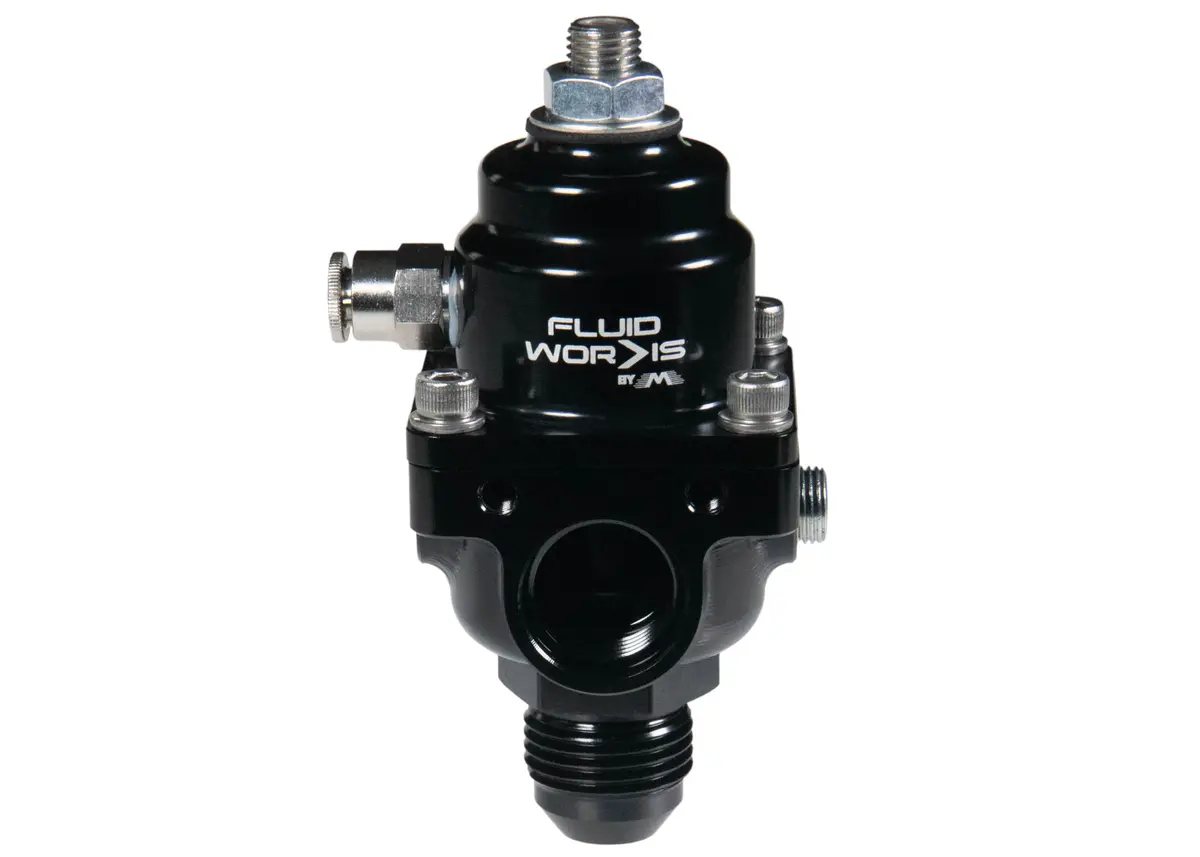

Fluidworks 1–6 GPM Fuel Pressure Regulator – 35–70 PSI Output with 180° Fittings

Description

Fluidworks 1-6 gpm Fuel Pressure Regulator 35-70 psi 180 Degree Fittings 27-181

For Instructions: Click Here

Fluidworks innovative new fuel pressure regulators utilize an innovative needle and seat vent to control fuel bypass in a highly stable and consistent manner dynamically.

Features:

• Compatible with 1-6 GPM fuel pump setups
• Black Anodized Exterior
• Can be used as Boost Reference or Atmospheric reference
• 1/8″ NPT Female Reference Fitting
• (2) 1/8″ NPTF Fuel Pressure Reference Ports for use with mechanical gauge and/or pressure transducer
• Approved for use with Gasoline, Diesel, Oxygenated, Ethanol and Alcohol Fuels
• Made in the USA
• Tapered Needle and Seat Vent Relief
• Bypass Regulator
• (2) -8orb female 180 degree opposed inlet fittings
• Built in -8AN or -10AN return fitting (choose at checkout)
• Designed to be used in 35-70psi adjustable base pressure

For -8ORB to 8AN Fittings: Click Here

For -8ORB to 6AN Fittings: Click Here

For 8ORB male to 8ORB male Fittings: Click Here

For other Fluidworks Fuel Pressure Regulators and Fitting Configurations: Click Here

Learn more about Boost Reference Fuel Pressure Regulators on this Tech Tip Tuesday
