Description
East Coast Supercharging would like to announce our new high output Gen V Supercharging system! The base system features the quiet and reliable Paxton Novi 1500 Head Unit, which has made over 830+rwhp on stock bottom end LS3 Camaro’s. This system was designed with a dedicated 8 rib supercharging drive system to provide positive belt tracking no matter how much boost you are planning to make.
Our base system is designed to deliver 575 – 625 RWHP on otherwise stock cars, but is expandable with the optional YSi head unit capable of more than 1000 RWHP if desired.
Base systems come complete with a polished or black headunit, matte black anodized bracket package and polished or black charge piping, an industry standard Tial 50mm blowoff valve, ECS Boost-A-Pump and FIC 650cc Injectors, and a high flow front mounted air to air intercooler system in addition to a dedicated Crank pulley and HD Tensioner assembly. The kits are complete with all necessary hardware, silicone hoses and belts.
System Contents & Features:
• Kit adds approximately 200hp to otherwise stock vehicles, and the capability to deliver far more on modified cars.

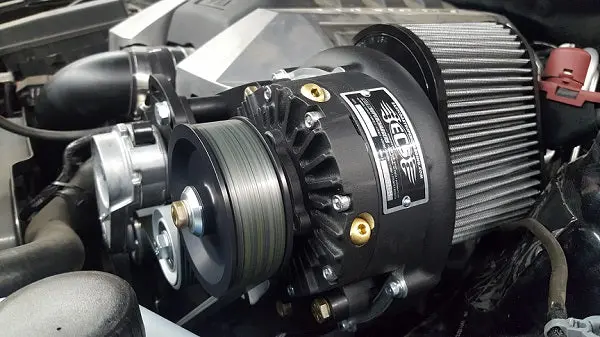

• Belt driven NOVI 1500 centrifugal supercharger provides unmatched reliability (Vortech YSI upgrade available)
• Fuel management upgrade includes a ECS fuel pump voltage booster and 60# injectors for safe, reliable operation
• Self contained oiling for ease of installation and the best possible lubrication and cooling for the supercharger
• Braided Stainless steel oil drain line
• Tial Q OR Tial Qr 50mm Blowoff Valve.
• Billet aluminum supercharger mounting bracket assembly includes steel double, walled ball bearing idlers, Crank pulley, drive belt and all necessary hardware
• Crank pin kit and new GM Crank bolt included
• High-flow, reusable air filter
• Air inlet restrictor plate integrated into system provides greater low RPM hp & torque while maintaining safe peak RPM boost levels
• PCV oil separator to eliminate oil vapor from intake
• ECS Valve Cover Breather
• Inlet and discharge duct connections utilize heat-resistant silicon sleeves and premium quality stainless steel clamps

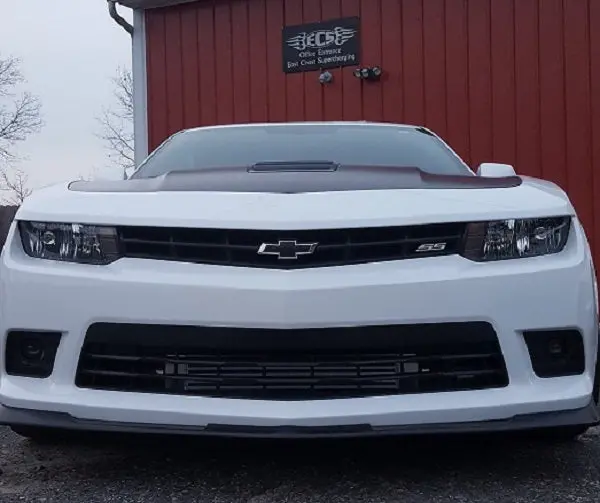

• Large, thermally efficient air to air intercooler
• System is designed to work with factory cooling system
• Heavy duty belt tensioner with double walled ball bearing idlers to ensure proper belt tracking and traction
• Kit comes with new NGK TR-6 spark plugs
• New 160 degree thermostat to ensure adequate cooling
• Complete kit fits under stock hood
• 6061 aluminum ducting
All of the ECS Supercharger Kits come with the genuine Tial blow-off valves. You can select the Q (Loud) or Qr (Quieter) valve below, no additional cost!
* Optional: Powder coated Brackets & Ducting to specific paint code colors. Will match your SS exterior paint!
