S13 BOLT-ON TUBE FRONT AND LRS KIT – MADE TO ORDER WILL SHIP ONCE COMPLETED

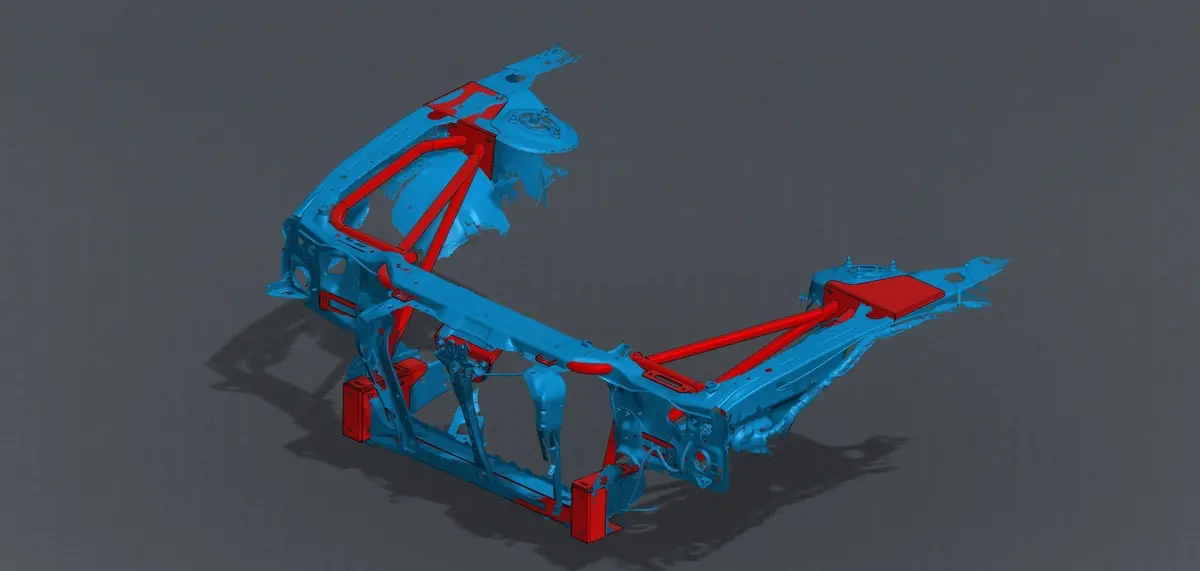

This tube front is designed to fit the S13. This kit works with both Kouki and Zenki headlights and front ends. The kit comes stitch-welded with steel threaded inserts for all bolted connections.
There is the option for MIG or TIG welded.
TUBE FRONTS HAVE A CUSTOM LEAD TIME – PLEASE REACH OUT FOR A LEAD TIME ESTIMATE info@cagekits.org
Features:
- This kit comes with the Tube Front as well as the LRS
- Adds an additional 1.25″ of room for a radiator
- Maintains factory popup light bracket positioning
- Maintains hood latch position
- Stitch-welded with steel threaded inserts for bolted connections
- Option for MIG or TIG welded
- Fender Tabs included
Have a front end conversion on your S13? Check out our options:
S14 Front End Conversion: S13 Chassis with S14 Nose, Fenders, Hood, and Headlights (S13.4-TF)
- Works with the S14 headlights on the S13 chassis
- Maintains factory popup light bracket positioning
- Maintains hood latch position
- Stitch-welded with steel threaded inserts for bolted connections
- Option for TIG or MIG welded

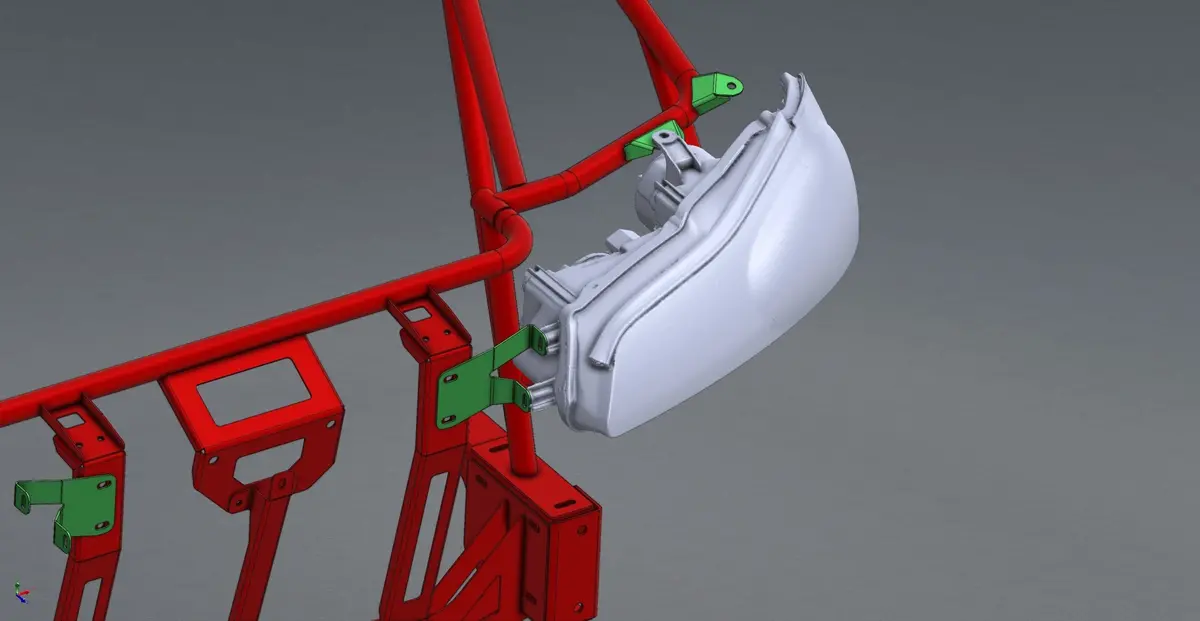

S15 Front End Conversion: S13 Chassis with S15 Nose, Fenders, Hood, and Headlights (S13.5-TF)
- Works with the S15 headlights on the S13 chassis
- Maintains factory popup light bracket positioning
- Maintains hood latch position
- Stitch-welded with steel threaded inserts for bolted connections
- Option for MIG or TIG welded
Description:

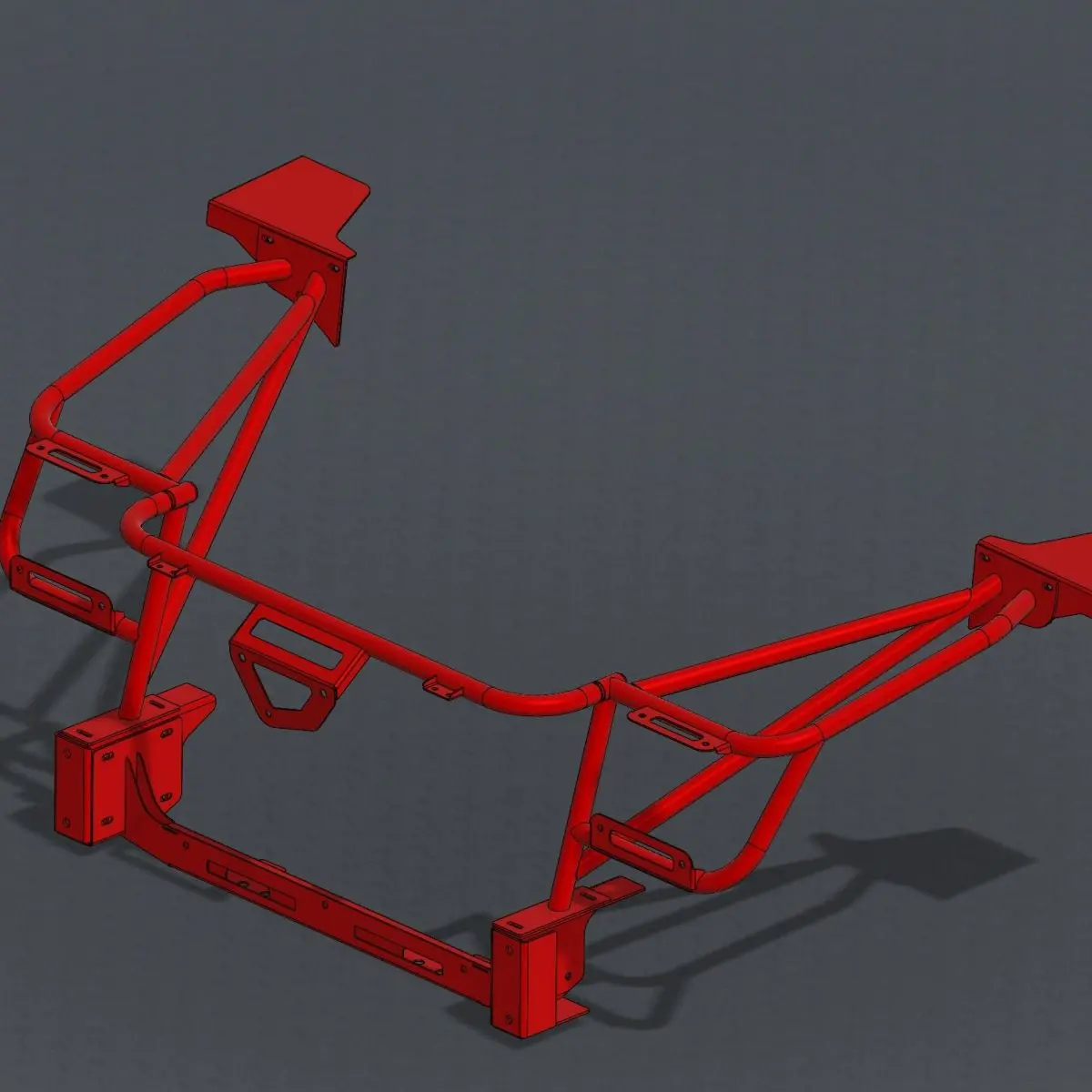

The S13 Tube Front comes fully CNC laser notched and CNC mandrel bent. It’s fully welded in a precision fixture in order to maintain accuracy. Metric fasteners are used to retain the factory hardware during your installation.

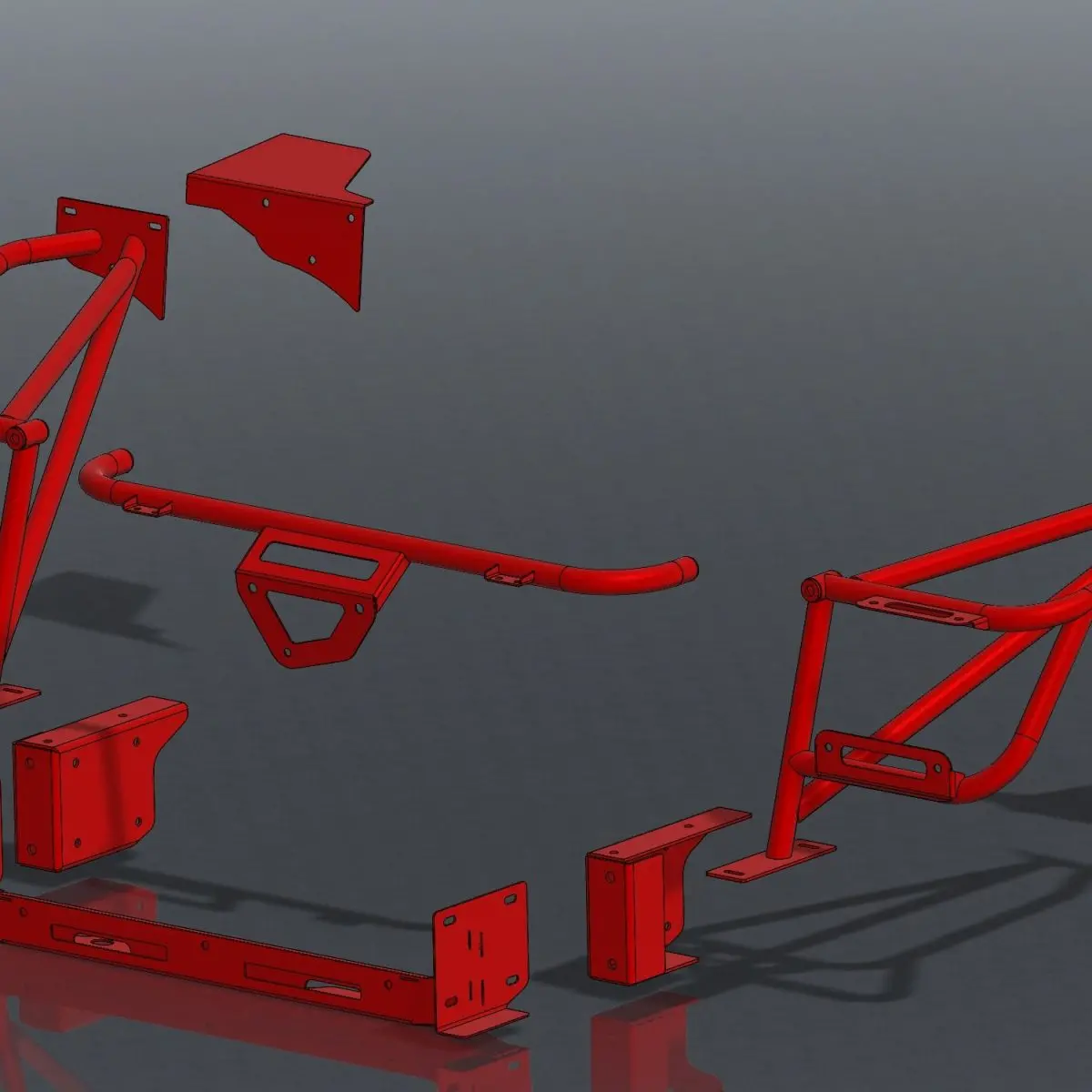

This kit is fully modular and comes apart in 4 pieces: DS Tubes, PS Tubes, Lower Rad Support, and Upper Rad Support. Tubing is 1″ x .095″ ERW and sheet metal is a mix of 14ga and 11ga O&P steel.
